Smoke ventilation

System Application

Fire and smoke pose a serious threat to human life and health. Contrary to popular belief, over 90% of fire related deaths are caused by smoke suffocation, and not by high temperature or burning. Smoke also causes considerable damage to property.

Fortunately, applying appropriate smoke and heat escape systems can provide considerable help in preventing the dangers caused by high concentrations of smoke and heat. The smoke ventilation window FSR with a motor operated by smoke control unit co-operating with smoke sensor and alarm switch creates a so-called “smoke and heat carrying away gravitational unit”.

The system is applied in public utility buildings (especially in stairways and in blocks of flats, hotels etc.).



Find a Stockist Buy Now



Smoke and Heat Extraction       System Installed        With the FSR installed, smoke has access to exit the building. As a consequence, lasting affects of smoke are minimised and health of occupants is maintained.	Absence of Smoke and      Heat Extraction System                                                 When the FSR isn't present, smoke builds up in the space available. As a consequence, property is damaged and occupants are at severe risk.

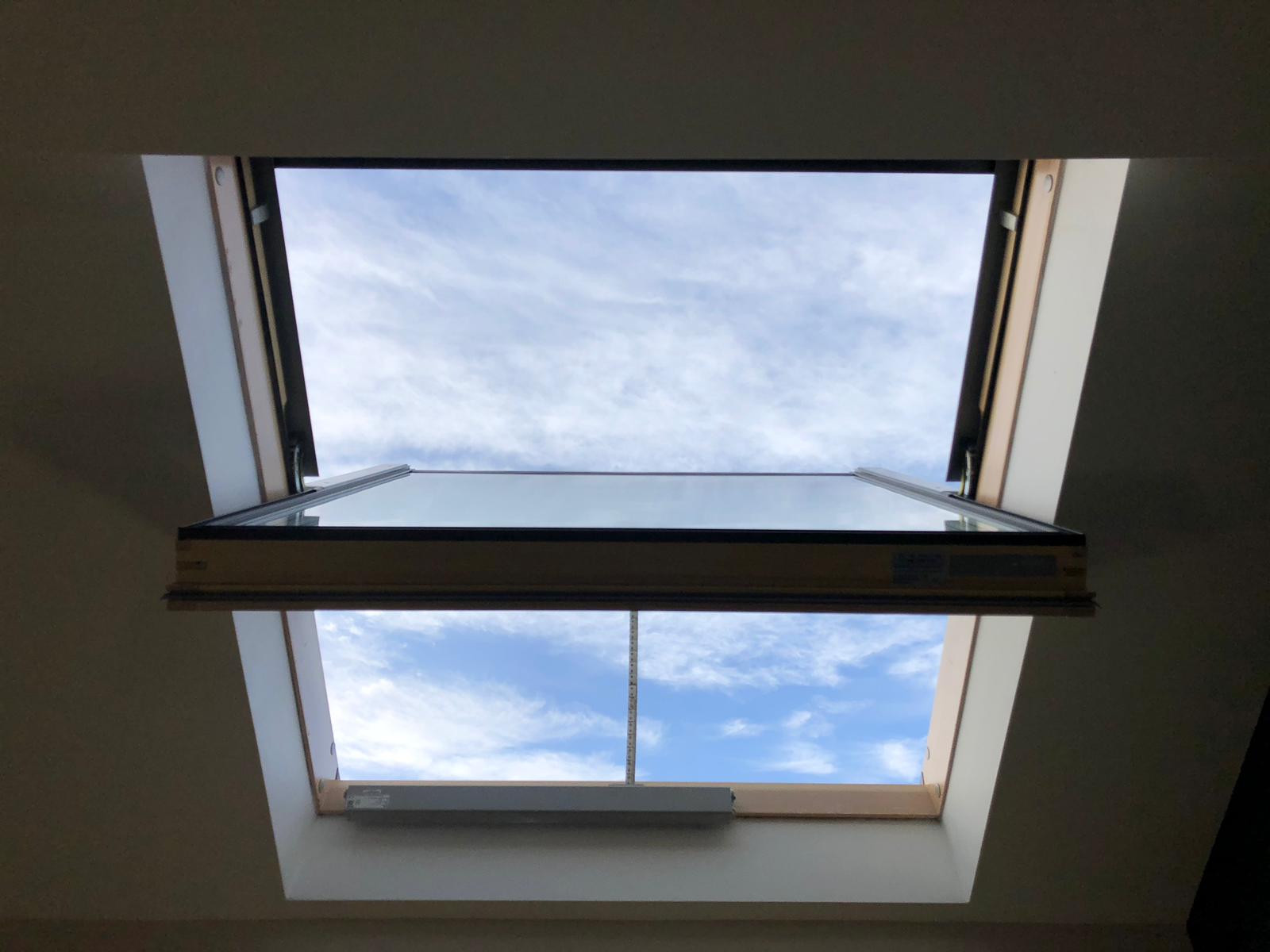

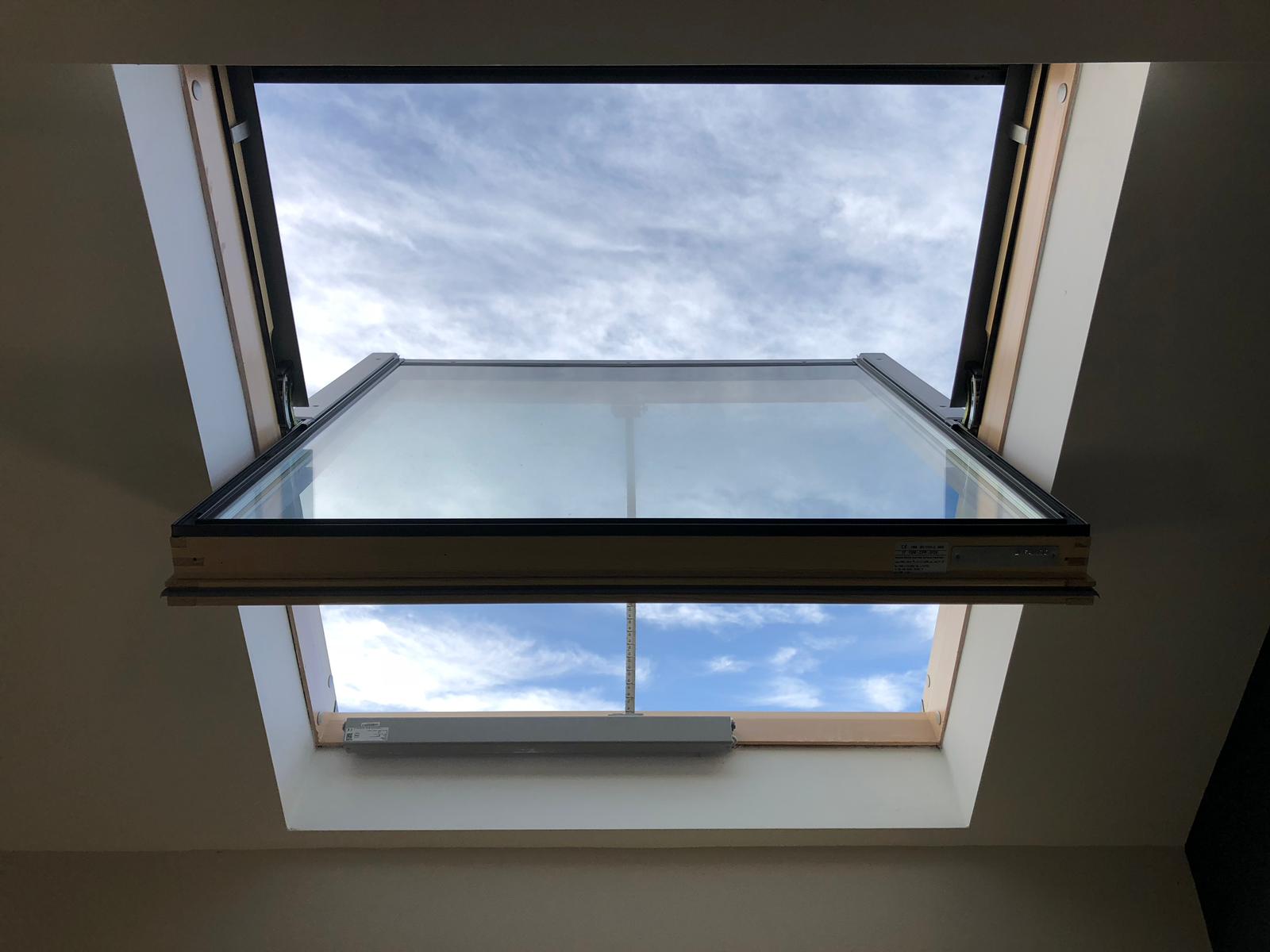

The system enables automatic or manual opening of the smoke ventilation window, which extracts excessive heat, smoke and toxic gases released during a fire.

Above all, it enables the avenues of retreat from the building to be smoke free, thus making evacuation easier. It also helps to localise the source of fire and allows faster fire extinguishing.

The sensor after detecting fire sends a signal to the control unit which, in turn, automatically activates electric motors opening the window. If the fire is noticed prior to the fire reaction sensor, e.g. visually, the smoke ventilation window can be opened manually by means of pressing the fire alarm button RT 45.

























The system also allows daily room ventilation using the LT 84U ventilation switch. After the programmed ventilation time elapses, the window closes automatically. It is also possible to connect to the system, the ZRD rain sensor, which shuts the window automatically in case of rain. In the event of fire, signals from the sensor do not interfere with window operating.



Gravitational System of Smoke and Heat Expelling

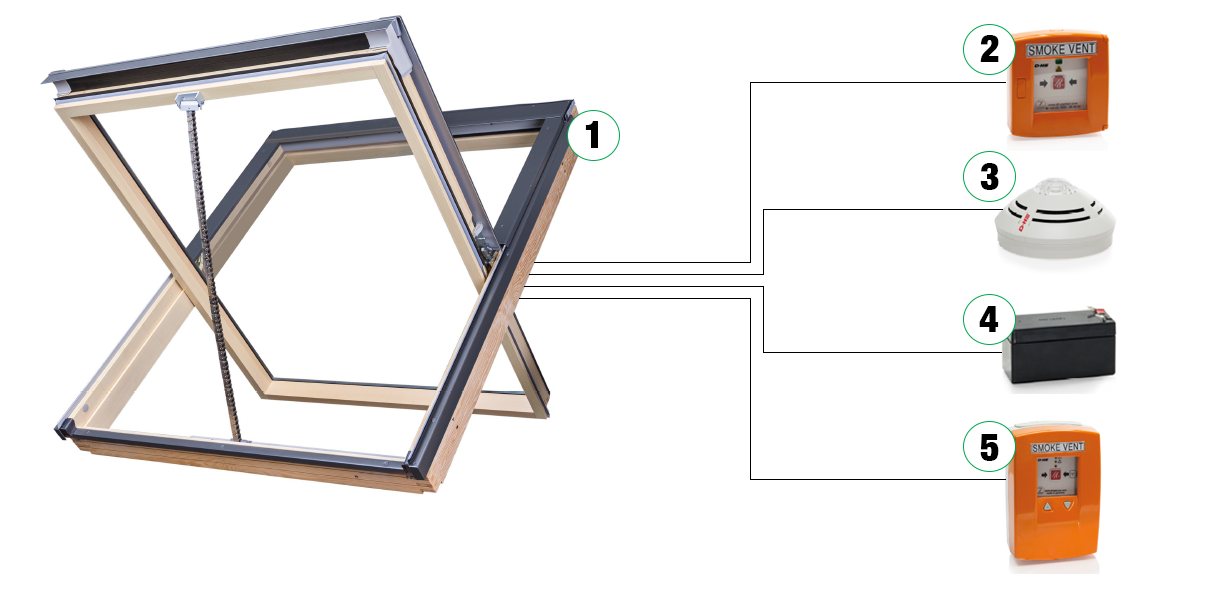

Components of the set

Symbol	Device Name
1. FSR P1	Smoke ventilation window
2. RT 45	Breakglass unit
3. SD-O 371	Smoke detector
4. 12v 3.2A	Battery
5. RZN 4503-T	Smoke control panel

Installation

To install the system, it is necessary to connect 230V AC power supply to the smoke ventilation control unit, and, subsequently, through suitable cables to the remaining system elements. The lengths of required cables depend on distribution of individual components of the system. The wiring diagram is presented in the fitting instruction for the smoke ventilation control unit. Fitting the smoke ventilation system should be performed by a qualified electrician only (1kV qualification). The system should be tested for fault-free operation every 6 months.

All elements of the system are certified and their application in buildings is authorised.
