Wooden folding highly insulated loft ladders
Whilst all FAKRO loft ladders come complete with an integral, insulated loft hatch, our energy-efficient loft ladders are designed for when even lower U values are desired. Ideal for achieving energy-efficient and passive homes.

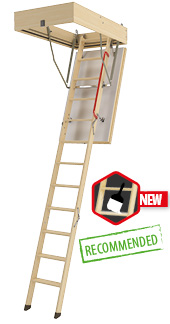

LTK Energy Loft Ladder
The LTK Energy loft ladder is a highly energy-efficient new generation loft ladder intended for energy-efficient buildings. They guarantee a high level of comfort, excellent thermal insulation parameters, and the highest class of air tightness (class 4 according to NEN-EN 12207). This ladder is ideal for buildings where large temperature differences occur between the upper floor and the unused loft space.
- U=0.68 W/m²K
- Double system of seals for greater air tightness
- 6.6cm thick hatch
- Fully assembled and ready for quick installation in the ceiling

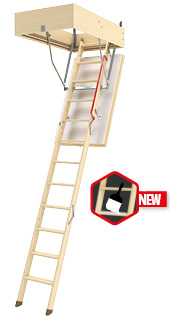

LWT Loft Ladder
The LWT loft ladder is a 3-part folding loft ladder with a wooden ladder and extra insulated hatch (U-value loft ladder = 0.51 W/m²K). It is specially designed for low-energy houses. It also guarantees the highest class of airtightness (class 4 according to NEN-EN 12207).
- U=0.51 W/m²K
- Triple system of seals for increased air tightness
- 8cm thick hatch filled with polystyrene insulation
- Fully assembled and ready for quick installation in the ceiling
LWT Passive House Loft Ladder
The LWT Passive House loft ladder has been specially designed to meet the standards required for a passive house.
It has an insulation thickness of 7.4cm and hatch thickness of 8cm, and features the highest rating of air tightness - Class 4. It comes complete with the LXD insulation kit which provides the standard of tight insulation between the ladder and ceiling opening needed in passive house construction.
- U=0.51 W/m²K
- Triple system of seals for increased air tightness
- 8cm thick hatch filled with polystyrene insulation
- Passive House Certified
- Insulation kit includes: airtight collar, sheepwool block insulation, and an air permeable collar
- Fully assembled and ready for quick installation in the ceiling
Installing the LWT Loft Ladder
Energy-efficient loft ladder specifications
-
LWT
-
varnished ladder -
stile ends -
white hatch -
three seals -
non-slip treads set flush with ladder strings -
handrail -
easy installation -
possibility of installing additional accessories -
fully assembled and ready for quick installation in the ceiling -
3 year warranty
LWT
- 160 kg maximum loading U=0.51 W/m²K loft ladder hatch U-value 7.4 cm insulation thickness 8 cm hatch thickness EN 14975 norm requirements
-
-
LTK Energy
- varnished ladder
- stile ends
- white hatch
-
peripheral seals -
non-slip treads set flush with ladder strings - handrail
- easy installation
- possibility of installing additional accessories
- fully assembled and ready for quick installation in the ceiling
- 3 year warranty
- 160 kg maximum loading U=0.68 W/m²K loft ladder hatch U-value 6 cm insulation thickness 6.6 cm hatch thickness EN 14975 norm requirements
- 160 kg maximum loading U=0.51 W/m²K loft ladder hatch U-value 7.4 cm insulation thickness 8 cm hatch thickness EN 14975 norm requirements
-
-
LWT Passive House
- varnished ladder
- stile ends
- white hatch
- three seals
- non-slip treads set flush with ladder strings
- handrail
- easy installation
- possibility of installing additional accessories
- fully assembled and ready for quick installation in the ceiling
- 3 year warranty
LWT Passive House
- 160 kg maximum loading U=0.51 W/m²K loft ladder hatch U-value 7.4 cm insulation thickness 8 cm hatch thickness EN 14975 norm requirements
-
