Balcony window

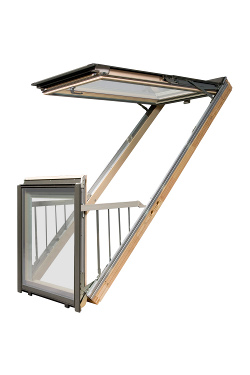

Galeria balcony windows are an innovative large roof window with an additional window opening up into a balcony. The Galeria window opens up so many opportunities to add quality and additional space into your home. The bottom sash can be pushed open to create the balcony and it has side safety barriers built in. Once closed the side rails are hidden inside the window and are not visible above the roof surface.



  • Balcony windowInnovative, large roof window in which the open sashes create a balcony. The upper sash is opened upwards, the lower forward allowing easy access to the balcony bay.
  • Side safety barriers are integrated into the bottom sash and slide out during opening. When closing the lower sash, balcony rails are hidden inside the window and are not visible above the roof surface. Concealed under the window flashing elements they do not collect dirt or spoil aesthetics of the roof. Once the balcony window is open, barriers are always dry and clean to secure trouble-free operation.
  • The sash when opened in position from 0 to 45 degrees is supported by innovative supporting mechanism enabling to leave the sash open in any position within this range.
  • The window is operated by the handle located at the bottom of the upper sash. Handle has a two-point locking mechanism.
  • The sash when rotated through 180 degrees is locked by the bolt for cleaning.
  • Automatic air inlet V40P.
  • Both the upper and lower sashes are equipped with safety glazing unit P2.
  • The highest quality pine wood, glued in layers, vacuum impregnated.
  • Double coated wood with ecological acrylic lacquer in natural colour.
  • Increased resistance to burglary - topSafe system.
  • A wide range of accessories.
  • Installation range from 35 to 55 degrees.



If you would like to receive further information about our Galeria's balcony windows please complete the form below. A member of the FAKRO Team will respond to you within 24-48 hours.

Contact form



  • FGH-V Galeria


    • Air inlet V40PAutomatic air inlet V40P
    • Glazing unit P2P2 - Energy saving double glazed unit. Toughened outer pane. U-value of window 1.5 W/m²K
    • Trzyszybowy, superenergooszczędny i antywłamaniowy pakiet szybowy P5P5 - Energy saving triple. U-value of 1.1 W/m²K
    • Highest quality pine woodHigh quality close-grain vacuum - impregnated redwood pine guaranteed to be knot-free
    • Flashing EHV-AT ThermoWide range of accessories
    • Suitable for pitches from 35-55Installation range: 35 – 55°
    • 1.5 W/m²K window U-value 1.1 W/m²K glazing U-value 35dB acoustic insulation Rw 4H-Tg15Ar-33.2T glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A V40P air inlet type twice varnishing four seals Elegant handle
    • 0.97 W/m²K window U-value 0.5 W/m²K glazing U-value 35dB acoustic insulation Rw 4HS-Tg10Kr-4HT-Tg8Kr-33.2T glazing unit argon inert gas filled panes + external glass toughened V40P air inlet type up to 49m³/h air inlet air flow twice varnishing four seals Elegant handle
  • FGH-V/U Galeria


    • Air inlet V40Pautomatic air inlet V40P
    • Glazing unit P2P2 - Energy saving double glazed unit. Toughened outer pane. U-value of window 1.3 W/m²K
    • Trzyszybowy, superenergooszczędny i antywłamaniowy pakiet szybowy P5P5 - Energy saving triple. U-value of 1.1 W/m²K
    • Highest quality pine woodhighest quality pine wood, glued in layers, vacuum impregnated
    • Wood painted three times with ecological acrylic lacquerwith three coats of polyurethane varnish ideal for creating a durable and smooth finish in white on the frame surface
    • Designed for kitchens and bathroomsdesigned for rooms with periodically elevated humidity levels (kitchens, bathrooms)
    • Suitable for pitches from 35-55Installation range: 35 – 55°
    • 1.5 W/m²K window U-value 1.1 W/m²K glazing U-value 35dB acoustic insulation Rw 4H-Tg15Ar-33.2T glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A V40P air inlet type triple varnishing four seals Elegant handle
    • 0.97 W/m²K window U-value 0.5 W/m²K glazing U-value 35dB acoustic insulation Rw 4HS-Tg10Kr-4HT-Tg8Kr-33.2T glazing unit argon inert gas filled panes + external glass toughened V40P air inlet type up to 49m³/h air inlet air flow triple varnishing four seals + multi-point opening Elegant handle
Topsafe® system of burglary protection as standardTopsafe® system of burglary protection as standard
