Top hung and pivot window preSelect MAX

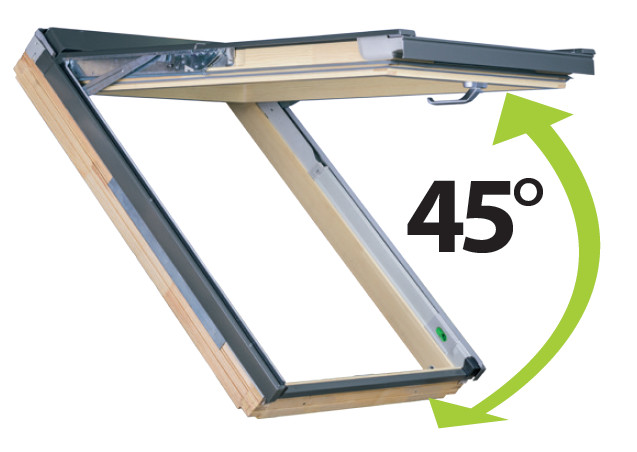

The sash in the FPP-V preSelect MAX top hung and pivot window can be opened up to 45°, which is nearly 30% more than when compared to the previous model. This significant improvement allows for better use of the additional space created within the room. Thanks to two independent opening mechanisms, the innovative hardware system guarantees the complete stability of the sash in both opening functions. This provides high durability of the product and safe operation.

  • Handle ‘Elegant” positioned in the base of the sash for easy operation and two step micro-opening.
  • The pivot function enables the sash to be rotated through 180° and locked when cleaning the outer pane or installing the awning blind.
  • Wide range of additional accessories.
  • Suitable for pitches from 15-55°, in a special version between 55-85°.

Top hung and pivot window preSelect MAX



Top hung and pivot window preSelect MAX | FAKROthermoPro technology as standard

System topSafeTopsafe® system of burglary protection as standard







Gallery

Top hung and pivot window preSelect MAX | FAKRO

Two opening options

The preSelect MAX window comes with two independent opening mechanisms to ensure stability and increase safety of operation. The sash can be opened outwards from the top and via centre pivot. The innovative hardware system guarantees the complete stability of the sash in both opening functions. The outward opening option provides an additional space within the attic and panoramic views of the outside. In pivot mode the sash can be locked into position to facilitate cleaning of the outer glass.

preSelect MAX switch

The preSelect sliding switch in the new FPP-V window is placed in the bottom part of the frame for improved comfort and operation. The switch is used for choosing opening method and is invisible when the window is fully closed

Top hung and pivot window preSelect MAX | FAKRO

Top hung and pivot window preSelect MAX | FAKRO

Large sizes

Windows are available with the U3 glazing unit as standard. Their design allows to produce large-sized windows, including triple-glazed ones. Windows come in sizes from 78×160 (with the U5 glazing unit) and in sizes from 94×118 (with the U3 glazing unit) and in sizes 114×160, 134×118 and 134×140.

Automatic V40P air inlet

The V40P air inlet automatically adjusts the air flow channel to provide an optimum amount of air into the room. This also gives a healthy micro-climate, energy savings and reduced heating costs.

Top hung and pivot window preSelect MAX | FAKRO

Top hung and pivot window preSelect MAX | FAKRO

topSafe system

A number of unique features known from the previous model have been incorporated into the new preSelect MAX window such as the topSafe anti burglary system which stands behind enhanced safety and security as well as burglary resistance.

thermoPro technology

The solutions introduced ensure improved quality and parameters of roof windows, thus increasing their energy-efficiency performance, providing greater durability, ensuring excellent tightness.

Top hung and pivot window preSelect MAX | FAKRO



  • FPP-V preSelect MAX


    • Air inlet V40Pautomatic air inlet V40P
    • Highest quality pine woodhighest quality pine wood, glued in layers, vacuum impregnated
    • Wood painted twice with ecological acrylic lacquerwood painted twice with ecological acrylic lacquer in natural colour
    • 1.3 W/m²K window U-value 1.0 W/m²K glazing U-value 32 dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened V40P air inlet type up to 49m³/h air inlet air flow twice varnishing four seals + multi-point opening Elegant handle
    • 1.0 W/m²K window U-value 0.5 W/m²K glazing U-value 33 dB acoustic insulation Rw 4HT-10-4H-10-4HT glazing unit krypton inert gas filled panes + external glass toughened V40P air inlet type up to 49m³/h air inlet air flow twice varnishing four seals + multi-point opening Elegant handle
  • FPU-V preSelect MAX


    • Air inlet V40Pautomatic air inlet V40P
    • Highest quality pine woodhighest quality pine wood, glued in layers, vacuum impregnated
    • Wood painted three times with ecological acrylic lacquerwith three coats of polyurethane varnish ideal for creating a durable and smooth finish in white on the frame surface
    • Designed for kitchens and bathroomsdesigned for rooms with periodically elevated humidity levels (kitchens, bathrooms)
    FPU-V U3 preSelect MAX
    • 1.3 W/m²K window U-value 1.0 W/m²K glazing U-value 32 dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened V40P air inlet type up to 49m³/h air inlet air flow triple varnishing four seals + multi-point opening Elegant handle

Instructions and catalogues

  Fitting instructions:

  User manuals:

 ​Film installation instructions
