Wooden folding section loft ladder

Wooden folding section loft ladder

  • LWS Plus


    • Beige hatch beige hatch
    • Peripheral seal peripheral seal
    • Treads set flush with ladder strings treads set flush with ladder strings
    • Possibility of installing additional accessories possibility of installing additional accessories
    • Fully assembled fully assembled and ready for quick installation in the ceiling
    • 3 year warranty 3 year warranty
    LWS Plus
    • 160 kg maximum loading U=1.1 W/m²K loft ladder U-value 3 cm insulation thickness 3.6 cm hatch thickness EN 14975 norm requirements
    The LWS Plus is a 3 or 4 section folding wooden ladders with insulated beige hatch which can be veneered or painted to match the interior character.
  • LWK Komfort


    • Stile ends stile ends (only in 3-section ladders)
    • White hatch white hatch
    • Peripheral seal peripheral seal
    • Treads set flush with ladder strings treads set flush with ladder strings
    • Handrail handrail
    • Possibility of installing additional accessories possibility of installing additional accessories
    • Fully assembled fully assembled and ready for quick installation in the ceiling
    • 3 year warranty 3 year warranty

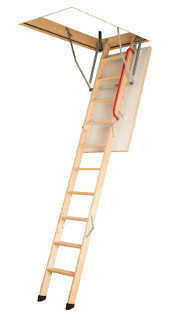

    LWK Komfort
    • 160 kg maximum loading U=1.1 W/m²K loft ladder U-value 3 cm insulation thickness 3.6 cm hatch thickness EN 14975 norm requirements
    LWK Komfort loft ladders have the same structure as the LWS ladders, but are also equipped with accessories that allow comfortable use of the ladders.
  • LWZ


    • Stile ends stile ends
    • White hatch white hatch
    • Finishing lining slats finishing lining slats
    • Peripheral seal peripheral seal
    • Treads protruding from strings non-slip treads protruding from strings
    • Handrail handrail
    • System of quick installation in the ceiling system of quick installation in the ceiling
    • Possibility of installing additional accessories possibility of installing additional accessories
    • Fully assembled fully assembled and ready for quick installation in the ceiling
    • 3 year warranty 3 year warranty

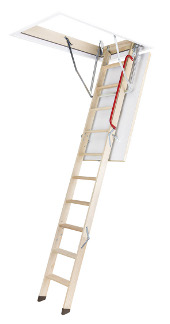

    LWZ
    • 160 kg maximum loading U=1.1 W/m²K loft ladder U-value 3 cm insulation thickness 3.6 cm hatch thickness EN 14975 norm requirements
    The LWZ is a 3-section folding wooden ladder with an insulated hatch. The wooden ladder box includes a steel frame, finishing linings slats and a quick installation system. This simplifies installation and reduces the time to fit the ladder in the ceiling.
  • LWF


    • Stile ends stile ends
    • Fire - resistant hatch fire- resistant hatch inner hatch in white, external in Cherry
    • Peripheral seal peripheral seal
    • Treads protruding from strings non-slip treads protruding from strings
    • Handrail handrail
    • Possibility of installing additional accessories possibility of installing additional accessories
    • 3 year warranty 3 year warranty

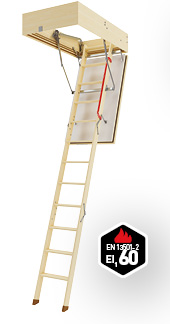

    LWF
    • 160 kg maximum loading U=0.9 W/m²K loft ladder U-value 3 cm insulation thickness 4.2 cm hatch thickness EN 14975 norm requirements
    The LWF folding 3 section fire-resistant loft ladder with its high fire-resistant properties, EI2= 30 min (according to EN 13501-2) is
    perfect for installations which are subject to stipulations as specified in building regulations.
  • LWL Lux


    • Stile ends stile ends
    • White hatch white hatch
    • Peripheral seal peripheral seal
    • Treads protruding from strings non-slip treads protruding from strings
    • Handrail handrail
    • Unloading mechanism unloading mechanism
    • Possibility of installing additional accessories possibility of installing additional accessories
    • Fully assembled fully assembled and ready for quick installation in the ceiling
    • 3 year warranty 3 year warranty

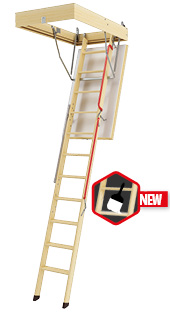

    LWL Lux
    • 160 kg maximum loading U=1.1 Wm²K loft ladder U-value 3 cm insulation thickness 3.6 cm hatch thickness EN 14975 norm requirements
    The LWL Lux folding 3-section loft ladder has been equipped with two handrails for greater safety and user comfort. It has a
    special supporting mechanism for folding and unfolding the ladder.
  • LDK


    • White hatch white hatch
    • Peripheral seal peripheral seal
    • Treads protruding from strings non-slip treads protruding from strings
    • Handrail handrail
    • Possibility of installing additional accessories possibility of installing additional accessories
    • Fully assembled fully assembled and ready for quick installation in the ceiling
    • 3 year warranty 3 year warranty

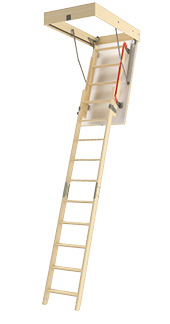

    LDK
    • 160 kg maximum loading U=1.1 W/m²K loft ladder U-value 3 cm insulation thickness 3.6 cm hatch thickness EN 14975 norm requirements
    The LDK loft ladder is a double-section loft ladder with a slidable lower section. This makes it possible to eliminate the swing space required on the landing for unfolding the ladder.

Instructions

Instructions

Fitting instructions:





Instructions Film installation instructions
Instructions

User manuals:

Instructions Catalogues and Brochures
