Centre pivot

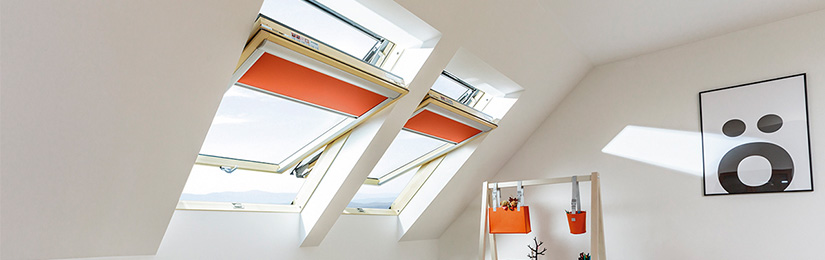

Centre pivot roof windows

  • Centre pivot

    Manufactured in pine, vacuum impregnated and coated with acrylic lacquer.

  • Convenient way to use the window as the handle is located at the bottom of the sash. The handle is equipped with a two step micro-opening facilty.

  • Easy cleaning of the outer pane and operating the awning blind with the use of blocking sash bolt when rotated through 180 degrees.

  • A wide range of accessories. Ability to install electrical controls.

  • Installation in roof pitches from 15 to 90 degrees.



Find a Stockist Buy Online Now

Topsafe® systemTopsafe® system of burglary protection as standard

Certificate TÜV SÜDCertificate TÜV SÜD
  • FTP-V


    • Air inlet V40P automatic air V40P
    • Glazing unit L3 U3 - Safety double glazed unit. Toughened outer pane. Laminated inner pane. U value of window 1.2
    • Glazing unit P2 P2 - Energy saving double glazed unit. Toughened outer pane. U value of window 1.2
    • Highest quality pine wood High quality close-grain vacuum - impregnated redwood pine guaranteed to be knot-free
    • Suitable for pitches from 15-90 Suitable for pitches from 15-90°
    • 0.97 W/m²K window U-value 0.5 W/m²K glazing U-value 35 dB acoustic insulation Rw 4HS-4HT-8-33.2T glazing unit argon inert gas filled panes + external glass toughened V40P air inlet type up to 49m³/h air inlet air flow twice varnishing four seals + multi-point opening Elegant handle
    • 1.3 W/m²K window U-value 1.0 W/m²K glazing U-value 33 dB acoustic insulation Rw 4H-15-33.2T glazing unit krypton inert gas filled panes + external glass toughened V40P air inlet type up to 49m³/h air inlet air flow twice varnishing four seals + multi-point opening Elegant handle
    • 1.3 W/m²K window U-value 1.0 W/m²K glazing U-value 32dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened automatic V40P air inlet type up to 49m³/h air inlet air flow twice varnishing four seals Elegant handle
    • 1.3 W/m²K window U-value 1.1 W/m²K glazing U-value 39dB acoustic insulation Rw 6H-12-33.2SIT glazing unit argon inert gas filled panes + external glass toughened - air inlet type - air inlet air flow twice varnishing four seals + multi-point opening Elegant handle
