Flat light tunnel with flexible light transmitting tube SF_
SF_ - with flexible light transmitting tube
SF_-L - with flexible light transmitting tube and illumination of the loft with natural light. The light tunnel fitted in the ceiling ensures comfortable use of the room
Features of the new light tunnel design:
- Approximately10% more U heat transfer co-efficient when compared to a version with a dome.
- Integrated flashing – for faster installation of the light tunnel.
The light tunnel consists of: roofing element, flexible light transmitting tube 2.1m long, ceiling frame, prismatic diffuser and installation kit.
Characteristic:
- FLEXIBLE LIGHT TRANSMITTING TUBE - The light transmitting tube is made of metallised polyester, additionally reinforced with metal wire. This design produces a robust and flexible light transmitting tube which is ideal for installation over short distances in rooms with structural obstacles that have to be bypassed. The advised maximum flexible tube length is 4m for the 350mm diameter tube and 6m for the 550mm diameter tube.
- ROOFING ELEMENT - This consists of an aluminium frame into which 4mm thick toughened glass is bonded. The light transmitting tube is fitted to the inside profile of the frame. The roofing element is made of aluminium sheet metal or special organic glass (L – version with additional illumination of the loft) and is integrated with the flashing. The entire structure is finished in grey-brown RAL 7022 which matches perfectly all standard colours of roof covering materials.
- CEILING FRAME - The new ceiling frame is made of organic glass and is equipped with a built-in light diffusing element. The cover is manufactured of high-impact polystyrene in a white opaque colour. Ceiling elements of flat light tunnels are more rounded in comparison to light tunnels with a dome.

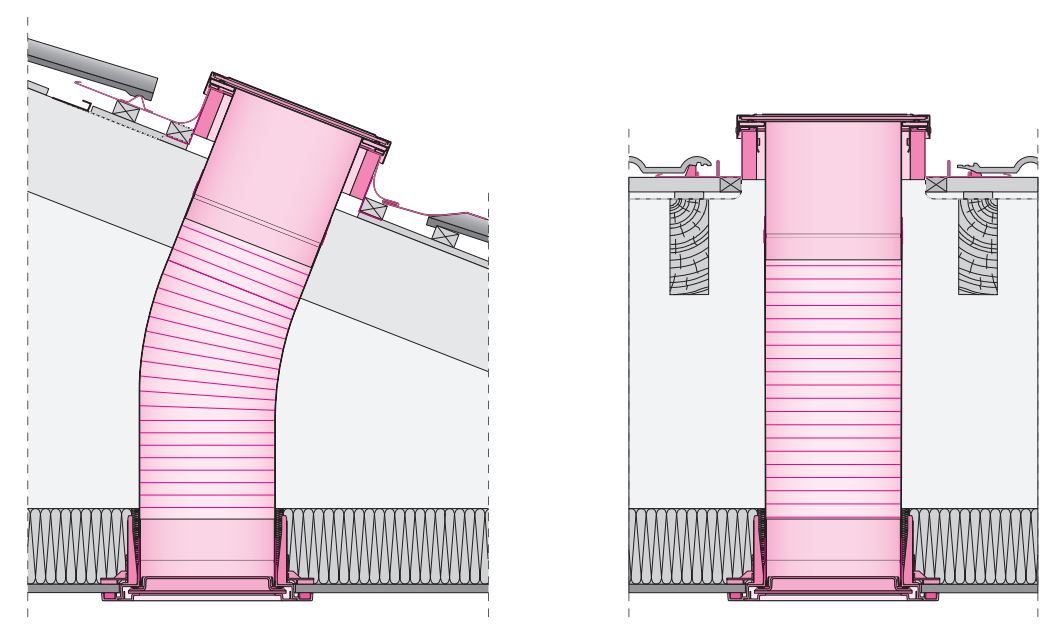

Cross-section of light tunnel SF_:
