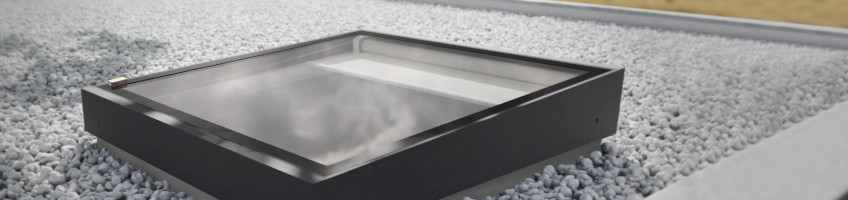

Flat roof windows type Z

New line of the D_Z flat roof window is based on design applied in type G windows. A specially constructed glass section with a slope on the outer surface allows drainage of water even when the window is fitted perfectly horizontally in relation to the roofline. Factory-installed angled glass section replacing a dome makes the window installation process quicker. The window is equipped with the P2 anti-burglary glazing unit as standard.

Excellent thermal insulation performance. Thanks to proven design of the window which is constructed of multi-chamber PVC profiles filled with insulation material, heat transfer coefficient for a whole window U-value is 0.95 W/m2K.

D_Z-A windows come with welded glass section to secure modern aesthetics, while D_Z-B windows are equipped with riveted glass section.

Distribution Contact Article

Features

Glazing units

Windows are offered with safe P2 glazing unit having the internal pane anti-burglary class P2A. Should the pane crack, shards of glass do not pose a danger but remain on the laminate film. Anti-burglary P4 glazing unit with P4A class laminate is available as option.

Accessories

On request, windows are available with a factory-installed AMZ/Z Z-Wave awning blind under the glass section, thus providing a fully functional solution while saving time and limiting investment expenditures. The structure of the window enables installation of internal accessories.

Installation pitch

Installation possible from 0° without any additional elements that would increase the installation pitch to 15°.

Available sizes

Windows are available in 8 standard sizes from 60×60cm to 120×120cm. Upon request, windows can be manufactured in non-standard sizes in the range of 60×60 - 120×120cm. This enables D_Z windows to be used as renovation windows or applied in non-standard projects.

DEZ-A
DEZ P2
- LUX window class 0,95 W/m²K window U-value 1,1 W/m²K glazing U-value 4H – 14 - 33.2T + 4H; 4H – 14 – 33.2T + 6H glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A class 4 Air Leakage [cfm/ft2]
electrically opened with wireless Z-Wave system
DEZ-B
DEZ P2
- LUX window class 0,95 W/m²K window U-value 1,1 W/m²K glazing U-value 4H – 14 - 33.2T + 4H; 4H – 14 – 33.2T + 6H glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A class 4 Air Leakage [cfm/ft2]
electrically opened with wireless Z-Wave system
DMZ-A
DMZ P2
- LUX window class 0,95 W/m²K window U-value 1,1 W/m²K glazing U-value 4H – 14 - 33.2T + 4H; 4H – 14 – 33.2T + 6H glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A class 4 Air Leakage [cfm/ft2]
manually opened by control rod
DMZ-B
DMZ P2
- LUX window class 0,95 W/m²K window U-value 1,1 W/m²K glazing U-value 4H – 14 - 33.2T + 4H; 4H – 14 – 33.2T + 6H glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A class 4 Air Leakage [cfm/ft2]
manually opened by control rod
DXZ-A
DXZ P2
- LUX window class 0,95 W/m²K window U-value 1,1 W/m²K glazing U-value 4H – 14 - 33.2T + 4H; 4H – 14 – 33.2T + 6H glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A class 4 Air Leakage [cfm/ft2]
non-opening
DXZ-B
DXZ P2
- LUX window class 0,95 W/m²K window U-value 1,1 W/m²K glazing U-value 4H – 14 - 33.2T + 4H; 4H – 14 – 33.2T + 6H glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A class 4 Air Leakage [cfm/ft2]
non-opening
