uPVC Roof Windows
|
|
| |
 | Eco-friendly Our uPVC roof windows are made from as much as 63% recycled material and at the end of their life, over 99% of the window can be recycled. |
|
| ||
| Low Maintenance uPVC roof windows require very little maintenance compared to other types of windows. They are resistant to rot, rust, and corrosion, and they do not need to be painted or stained. |  |
|
| ||
 | Durable uPVC roof windows are very durable and can last for several decades without any major repairs or replacements. uPVC windows are ideal for rooms with increased humidity, such as kitchens and bathrooms. |
|
| ||
| Variety of Finishes Our windows can be perfectly matched to any interior. They are available in classic white as well as in attractive veneers such as pine and golden oak that resemble natural wood. And now available in black.
|  |
uPVC Roof Window Specification
-
PTP-V
-
efficient V35 air inlet -
energy-efficient U4 glazing unit: Uw=1.1W/m2K with standard flashing Uw=1.0W/m2K with EHV-AT Thermo flashing -
highly energy-efficient U5 glazing unit: Uw=1.0W/m2K with standard flashing Uw=0.9W/m2K with EHV-AT Thermo flashing -
white multi-chamber PVC profiles strengthened from the inside with galvanised steel -
Also available in golden oak (PTP-V/GO) and pine veneer (PTP-V/PI) -
The material used does not absorb any moisture and the window itself is durable and corrosion free -

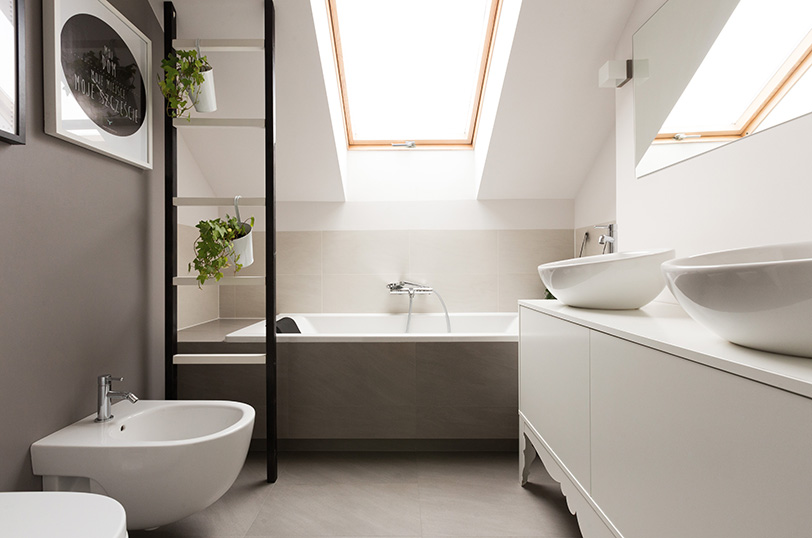

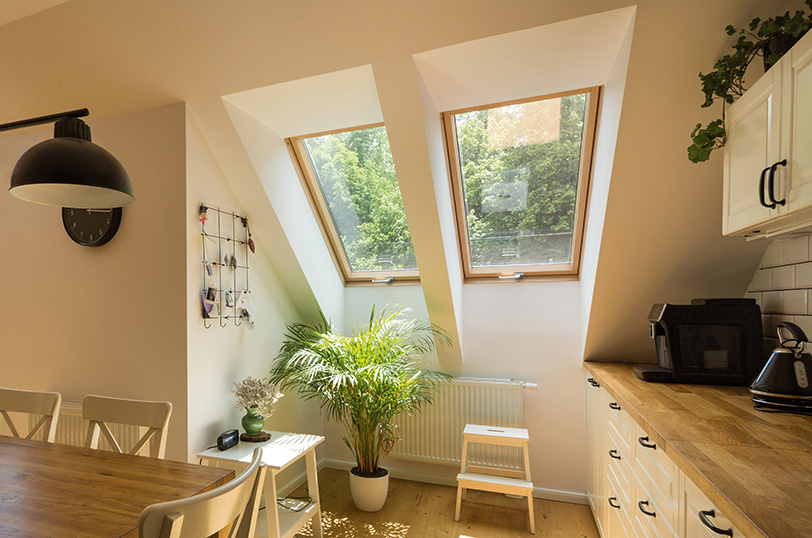

Intended for installation in rooms where elevated humidity levels stay for long time (kitchens, bathrooms) -
Suitable for pitches 15-90°
- 1,0 W/m²K window U-value 0,5 W/m²K glazing U-value 34 dB acoustic insulation Rw 4HT-10-4H-10-4HT glazing unit krypton inert gas filled panes + external glass toughened V35 air inlet type up to 41m³/h air inlet air flow - varnishing 4 seals + multi-point opening Elegant white handle
- 1,1 W/m²K window U-value 0,7 W/m²K glazing U-value 34 dB acoustic insulation Rw 4HT-12-4-12-4T glazing unit argon inert gas filled panes + external glass toughened - air inlet type - air inlet air flow - varnishing 4 seals + multi-point opening Elegant white handle
- 1,1 W/m²K window U-value 0,7 W/m²K glazing U-value 34 dB acoustic insulation Rw 4HT-12-4-12-4T glazing unit argon inert gas filled panes + external glass toughened V35 air inlet type up to 41m³/h air inlet air flow - varnishing 4 seals + multi-point opening Elegant white handle
- 1,3 W/m²K window U-value 1,0 W/m²K glazing U-value 32 dB acoustic insulation Rw 4H-16-4T glazing unit argon inert gas filled panes + external glass toughened V35 air inlet type up to 41m³/h air inlet air flow - varnishing 4 seals + multi-point opening Elegant white handle
- 1,3 W/m²K window U-value 1,0 W/m²K glazing U-value 33 dB acoustic insulation Rw 4H-15-33.2 glazing unit argon inert gas filled panes + external glass toughened V35 air inlet type up to 41m³/h air inlet air flow - varnishing 4 seals + multi-point opening Elegant white handle
-
Instructions and catalogues
Film installation instructions
Product details:
