Flashings for balcony window ESV/G, EZV-A/G, EHN-A/G, EHN-AT/G Thermo

Description

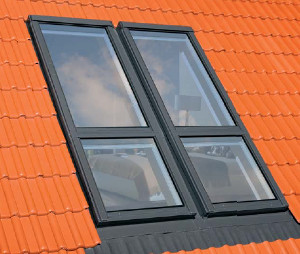

Flashings for balcony window ESV/G, EZV-A/G, EHN-A/G, EHN-AT/G ThermoFlashings E__ / G are designed for balcony windows FGH-V Galeria. Flashings ensure tight connection of roof window in the roof slope. They are marked with the letter G to indicate Galeria.

Flashings which are available:

  • ESV / G - for flat roof coverings- up to 10 mm thickness (2 x 5 mm): roofing paper, shingles, slate,
  • EZV-A / G – for profiled roof covering up to 45 mm profile depth: tile, profiled metal sheeting,
  • EHN-A / G – for high profile roof coverings up to 90 mm profile depth: tile, high profiled metal sheeting,
  • EHN-AT / G Thermo - universal flashing with an additional thermal insulation designed for the majority of roof coverings up to 90 mm profile depth.

The installation range in the roofs with pitches from 35 ° to 55 ° for installation
depths V, N. The Balcony window FGH-V Galeria can be combined horizontally with FDYV windows with raised axis of rotation windows when installed with special flashings for combinations K__ / G. Both (FGH-V and FDY-V) windows have a
lower sash of the same height.

Find a Stockist

Constituents of the Flashing


The flashing is made up of lower, upper and side elements. The lower element has a plastic mat glued to the underside, which allows easy and secure connection to roof covering. The flashing comes as standard (except for (ESV/G) with gutter which allows condensation to drain away from the window.
Vertical and horizontal crosssection with EZV-A/G flashing element

Vertical and horizontal crosssection with EZV-A/G flashing elements

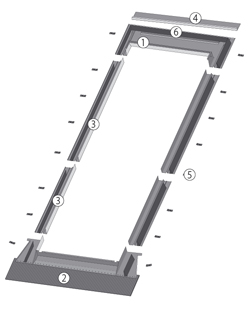

1 — top part of the flashings with insulation
2 — bottom part of the flashing with flexible apron
3 — side parts with sponge seals
4 — gutter
5 — aluminium strips to fix the flashing
6 — tile supporting profile
